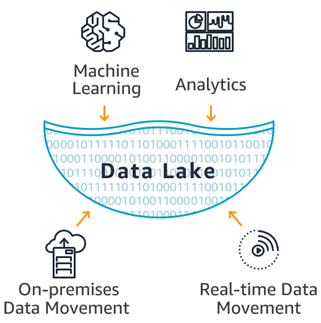

A data lake is a centralized repository that allows a firm to store structured and unstructured data at any scale. You can store your data as-is, without having to first structure the data, and run different types of analytics — from dashboards and visualizations to big data processing, real-time analytics, and machine learning to guide better decisions.
It is estimated that the global datasphere will grow to 175 zettabytes by 2025. Around 90% of the data is mostly unstructured or semi-structured data (JSON, nested JSON, xml, HTML, PDF etc). There are many solutions to store and process structured data but when it comes to any form of the data be it structured/semi-structured or unstructured, then the data lake comes into the picture.
A data lake maintains data in its native formats and handles the three Vs of big data — volume, velocity, and variety — while providing tools for analyzing, querying, and processing. Data lakes eliminate all the restrictions of a typical data warehouse system by providing unlimited space, unrestricted file size, schema on reading, and various ways to access data (including programming, SQL-like queries, and REST calls).
Need of Data lake
Some key business and technology drivers which create the need for a Data Lake:
- Silos, many data stores, and no SOR (statement of record), or single source of data
- Many business domains use the same data but have trouble accessing the golden source of that data
- Difficulties in fetching data from multiple sources to feed applications or analytical engines
- Data storage costs on premises are expensive and include the server lifecycle costs and hassle
- Data types, structures and formats vary
- Regulatory reports and compliance requirements are not being met – the data is too scattered, poor quality, hard to report on
- Document creation takes a lot of manual effort, overheads and needs to be automated
- End user issues with access problems, latency, resiliency issues, or data quality concerns

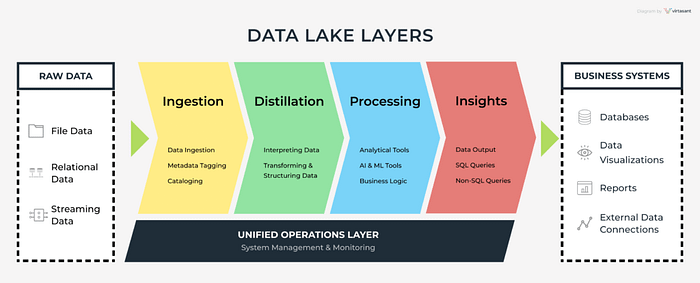

Data Lake Layers
- Ingestion
- Distillation
- Processing
- Insights

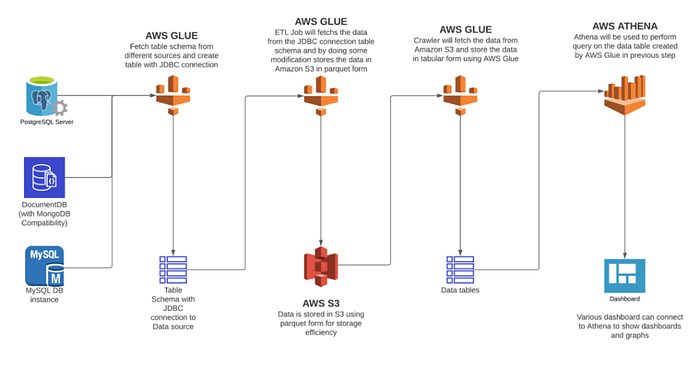

AWS Components eg
For smaller datasets, and less complex queries, a simple architecture in AWS would include:
-ODBC connection to a SQL server
-Table upload (S3 copy command, ingestion tool, DMS, Datasync) to move the data from the DB to S3
-Glue can be used to fetch the table schemas and create the target table in S3 via an ETL job
-Athena a lighter weight analytics engine can be used to query the S3 tables created by Glue
-Quicksight or other dashboards connect to Athena
